Blowout Preventers (BOP) (API 16A)

Integrated’s OEM API 16A Monogrammed BOPs are used to contain wellbore pressure for onshore, inlandwaters & offshore (above water line) environments in the Workover, Snubbing and Drilling applications

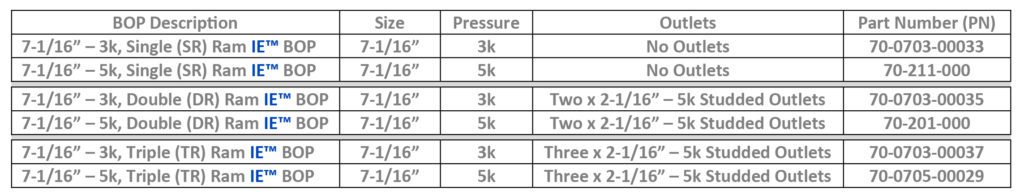

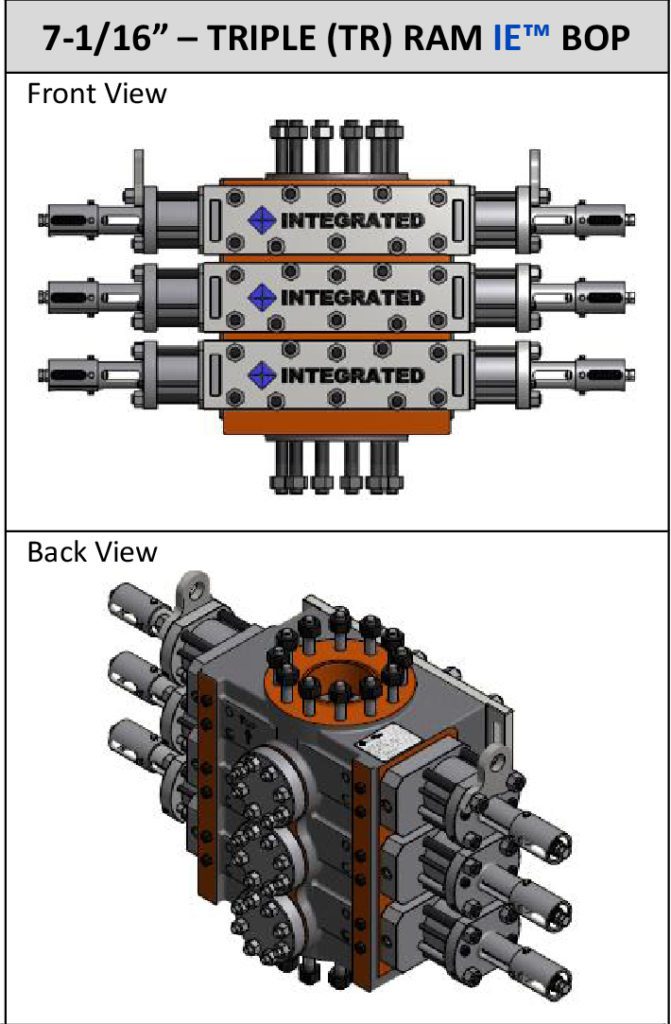

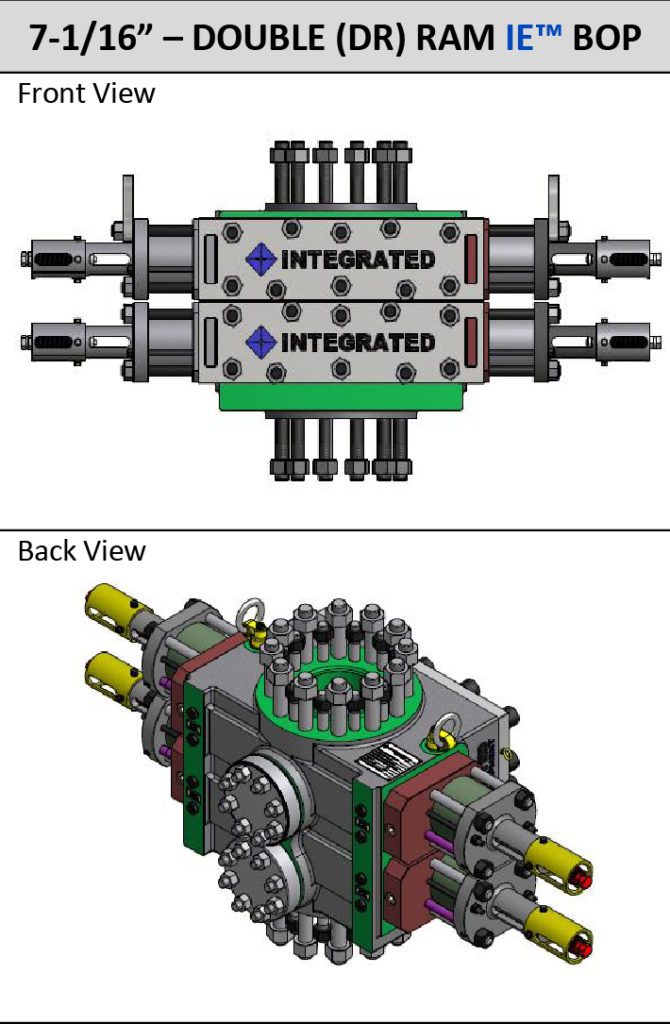

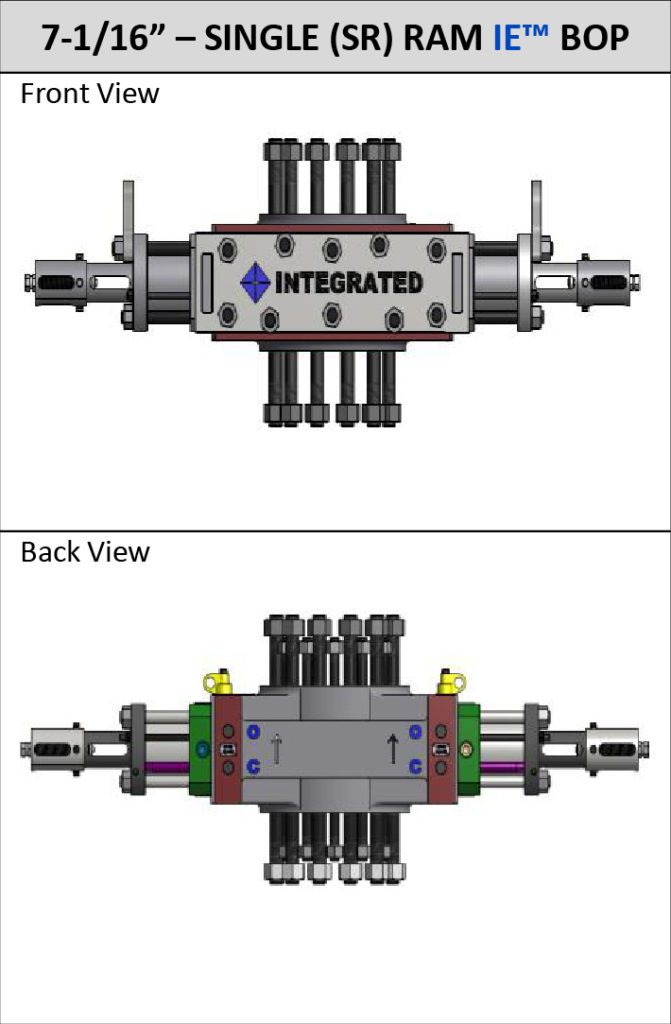

7-1/16” – 3K & 5K, HYDRAULIC RAM MODEL IE™ BOP

The Integrated Model IE™ Ram Type Blowout Preventer (BOP) is used to contain wellbore pressure for onshore and inland water workover and small-bore drilling application. The IE™ Ram BOP has a shorter height and lighter weight design for rugged compact pressure control operations. Easily maintained with a long history of field proven reliability.

Integrated Model IE™ Ram BOP is comparable with the WSI Duke and Shaffer’s Sentinel II Styles Material: A-487D, 75K | Temperature Class: T-20 / 250 | Quality Level: PR1 | Non-Metallic Seal Temperature Rating: BB | NACE MR-0175

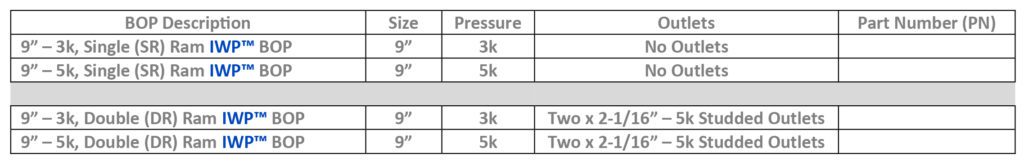

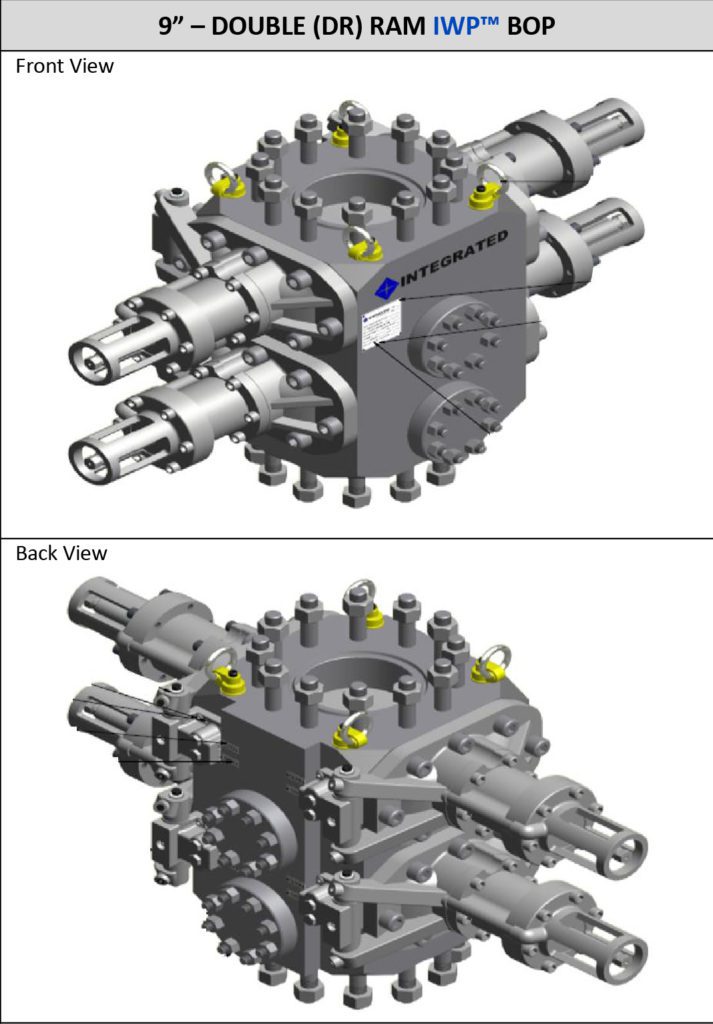

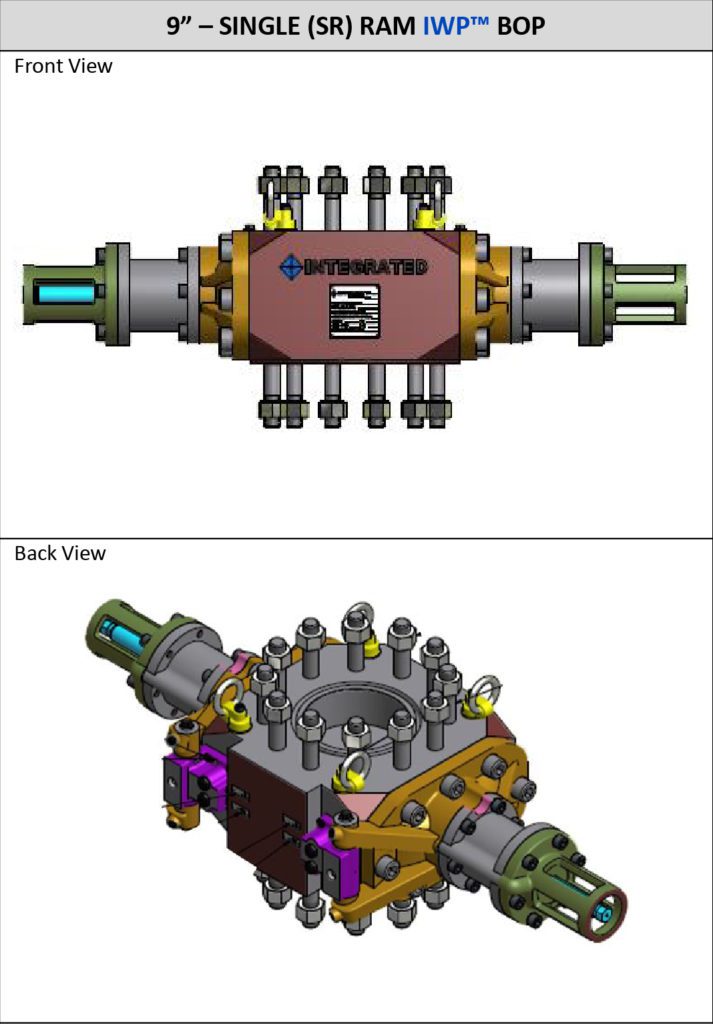

9” – 3K & 5K, HYDRAULIC RAM MODEL IWP™ BOP


The Integrated Model IWP™ Ram Type Blowout Preventer (BOP) is used to contain wellbore pressure for onshore and
inland water workover and drilling application.

Integrated Model IWP™ Ram BOP is comparable with the Shaffer’s LWP Style
Material: A-487D, 75K | Temperature Class: T-20 / 250 | Quality Level: PR1 | Non-Metallic Seal Temperature Rating: BB | NACE MR-0175

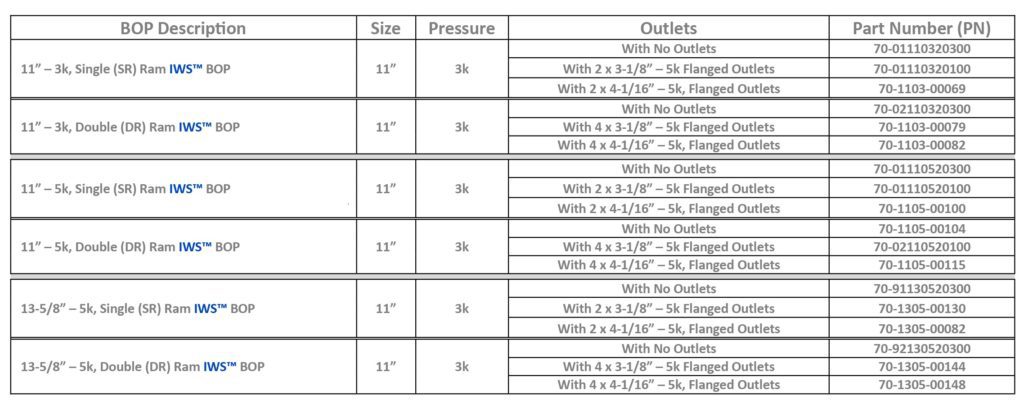

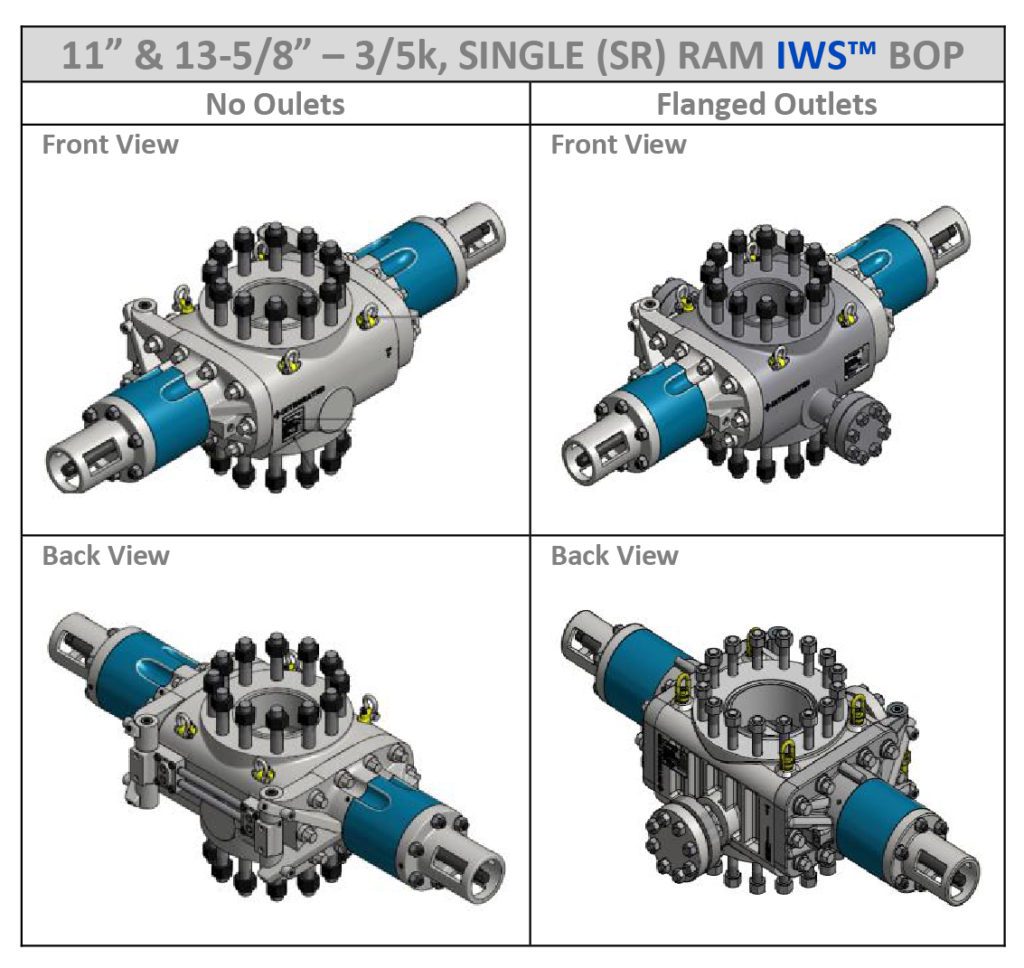

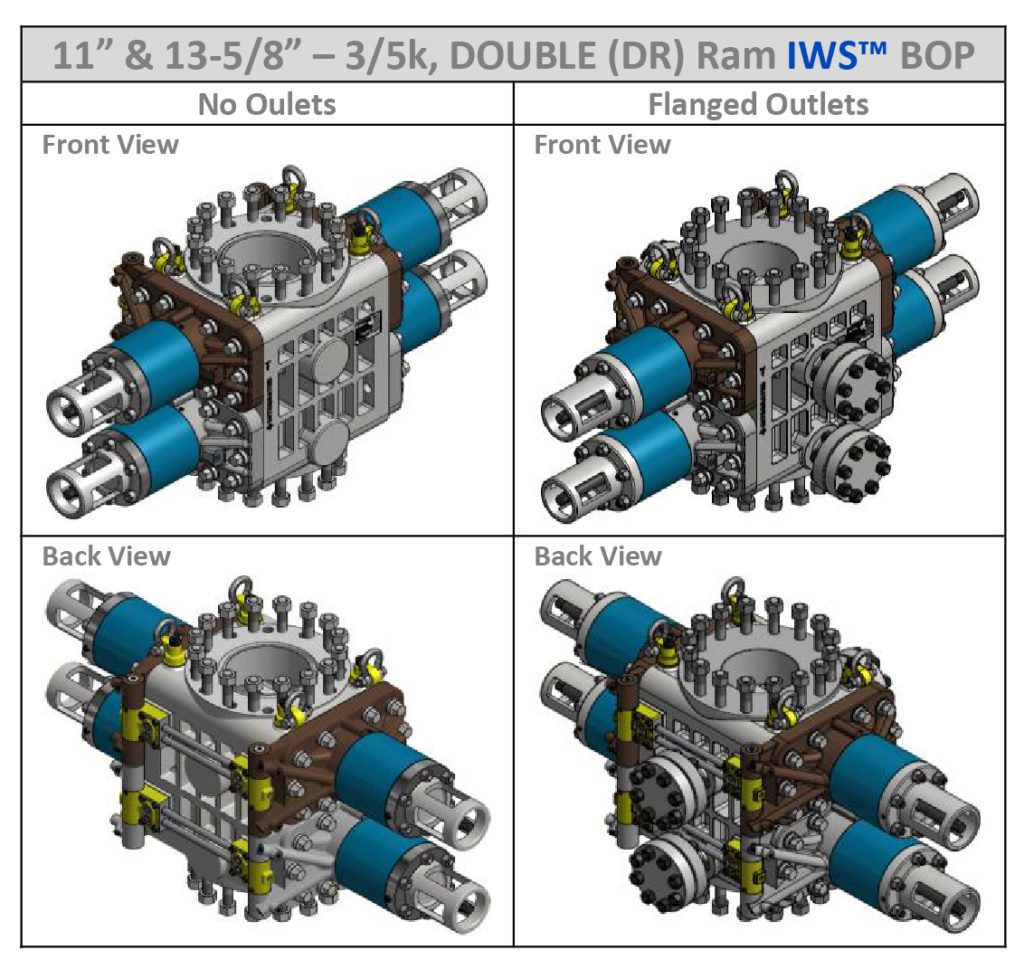

11” – 3K & 5K, HYDRAULIC RAM MODEL IWS™ BOP 13-5/8 – 3K & 5K, HYDRAULIC RAM MODEL IWS™ BOP

The Integrated Model IWS™ Ram Type Blowout Preventer (BOP) is a field proven design used to contain wellbore pressure for
onshore and inland water workover and drilling application. The major advantage is its easy operations and low maintenance.


Integrated Model IWS™ Ram BOP is comparable with the Shaffer LWS Style
Material: A-487D, 75K | Temperature Class: T-20 / 250 | Quality Level: PR1 | Non-Metallic Seal Temperature Rating: BB | NACE MR-0175C

The Integrated Model IWS™ Ram Type Blowout Preventer (BOP) is a field proven design used to contain wellbore pressure for
onshore and inland water workover and drilling application. The major advantage is its easy operations and low maintenance.

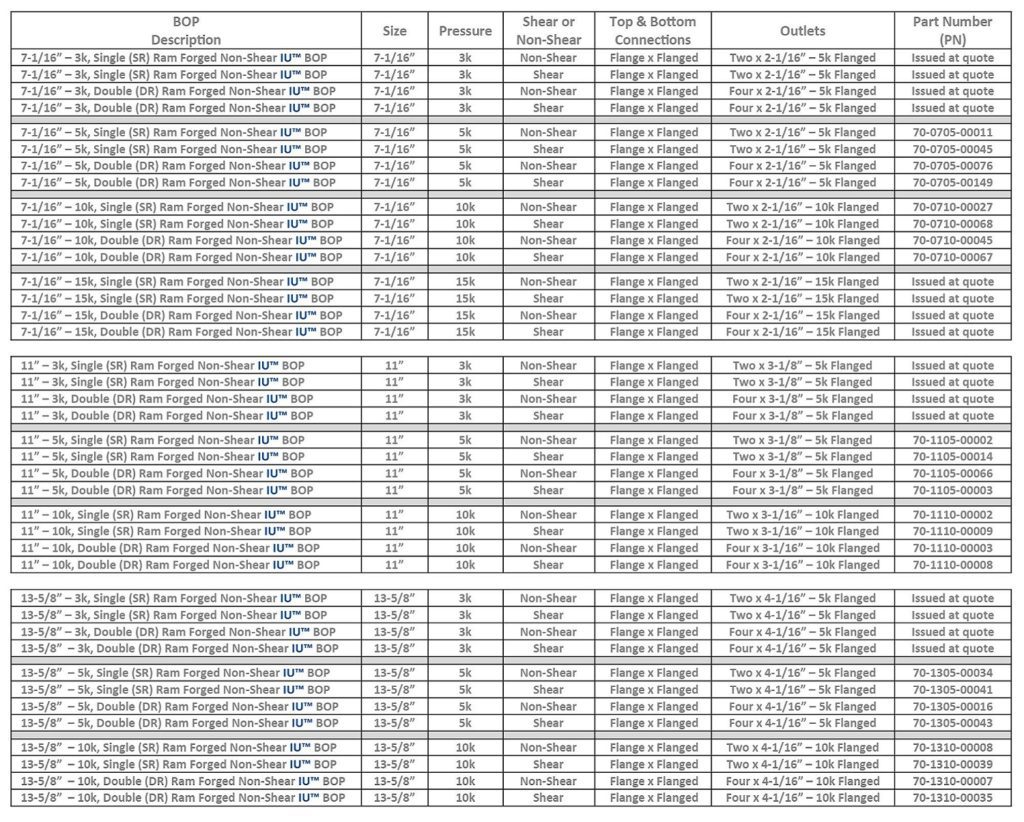

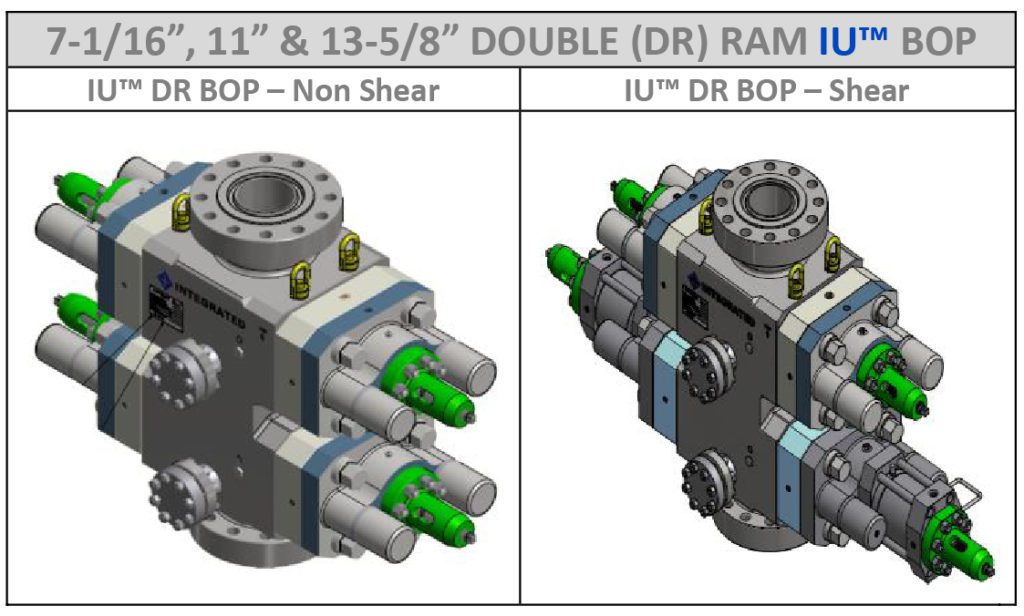

7-1/16”- 3|15K, HYDRAULIC RAM FORGED MODEL IU™ BOP 11” - 3|10K, HYDRAULIC RAM FORGED MODEL IU™ BOP 13-5/8” - 3|10K, HYDRAULIC RAM FORGED MODEL IU™ BOP

The Integrated Model IU™ Ram Type Blowout Preventer (BOP) is used to contain wellbore pressure for onshore and inland water
workover and drilling application.

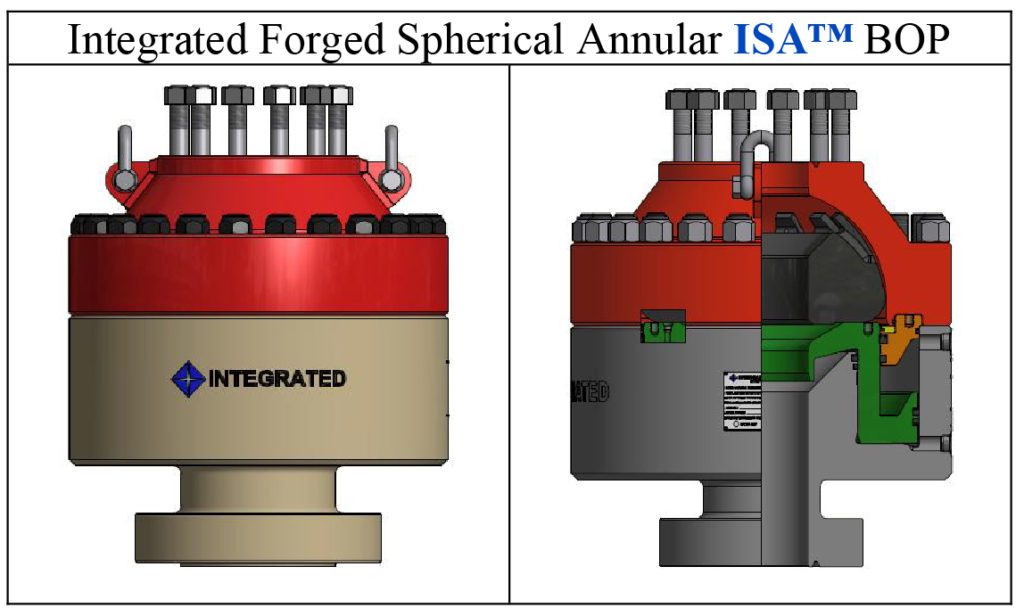

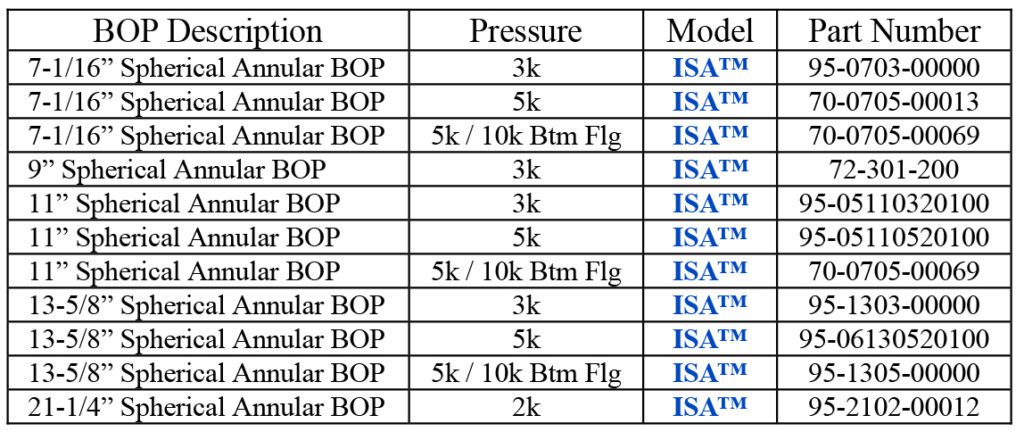

7-1/16”, 11”, 13-5/8” & 21-1/4”, HYDRAULIC
FORGED SPHERIAL ANNULAR MODEL ISA™ & IK™ BOPs

The Integrated Model ISA™ Spherical Annular Type Blowout Preventer is a hydraulic operated device designed for well pressure
control during workover and drilling operations. Simplistic design, ease of maintenance and field proven reliability … Integrated’s
ISA™ Packing Element can close on almost any shape or size tubing, casing, drill pipe, drill collars, tool joints, wireline and coiled
tubing in the well bore or completely seal off (CSO) of the open bore. It is ideal for stripping tubing, pipe, and wireline.

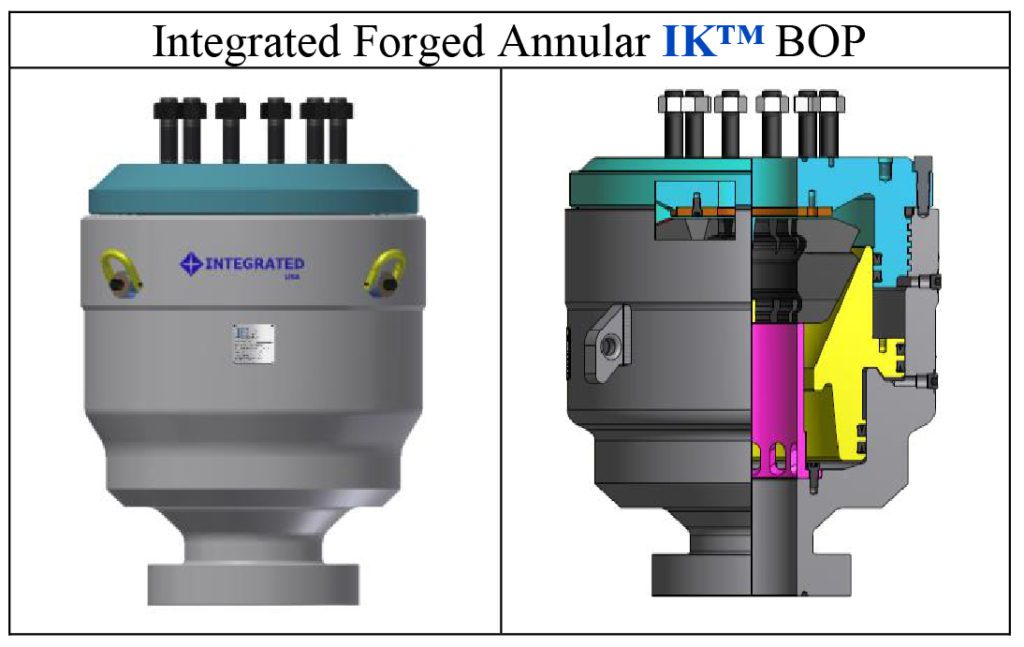

Integrated Model ISA™ Annular BOP is comparable with the Shaffer’s Spherical BOP and Model IK™ Annular Bop is comparable to Hydril GK BOP Material: Fully Forged AISI 4130, 75K | Temperature Class: T-20 / 250 | Quality Level: PR1
Non-Metallic Seal Temperature Rating: BGB | NACE MR-0175
