The modern oil and gas industry operates in some of the most unforgiving environments on the planet. From extreme pressure reservoirs to highly corrosive wellbore fluids, every component in a drilling and production operation is pushed to its absolute limits. At the heart of this infrastructure are industrial valves—the critical, unsung heroes that govern the safe, efficient, and reliable flow of hydrocarbons. In both upstream exploration and downstream production, valves serve as the primary safeguard against catastrophic blowouts, equipment failure, and environmental hazards. They are the primary tools for flow control, pressure management, and operational safety.
When working with high-pressure applications such as snubbing, workover, and well stimulation, operators cannot afford to compromise on quality. Equipment must be engineered to withstand highly abrasive particulates, volatile temperature fluctuations, and punishing operational torques. Recognizing the high stakes of these demanding environments, INTEGRATED has engineered a premier line of flow control solutions designed specifically for the oil and gas sector.

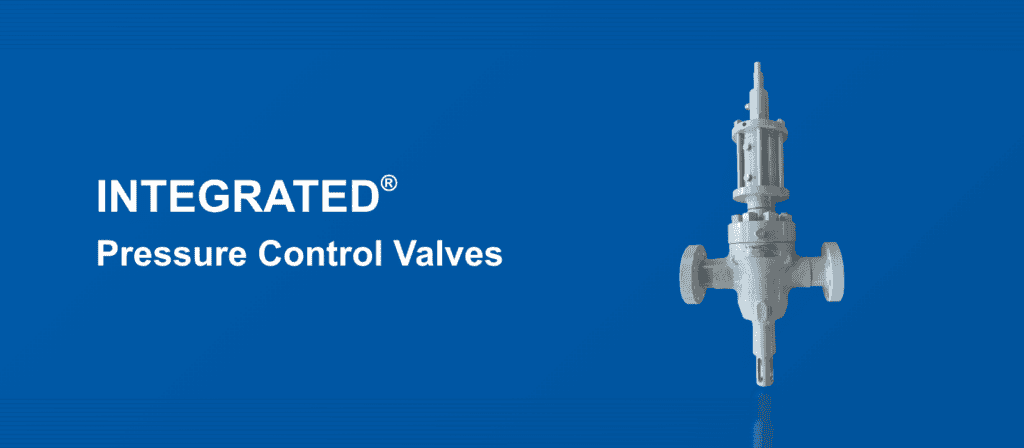

INTEGRATED® valves are meticulously manufactured to meet and exceed stringent industry standards. Below, we detail our valve series—the IFC™, IFLS™ and the AceFLO™ Valves each purpose-built to deliver unwavering performance when it matters most.
INTEGRATED® IFC™ Valve: Field-Proven Reliability
INTEGRATED® IFC™ gate valve is fundamentally designed for rugged, high-pressure oil and gas drilling applications. This field-proven valve is routinely deployed in critical pressure control systems, serving as a cornerstone component for Blowout Preventers (API 16A), Choke and Kill Manifolds (API 6A), and Wellhead setups (API 6A).
What sets the IFC™ valve apart is its robust construction and exceptional interchangeability. Engineered with a forged steel body and bonnet, it features a non-rising stem paired with a floating slab gate and seat. Its full-bore design ensures unimpeded flow, minimizing turbulence and pressure drops across the valve body. Because operational flexibility is critical in the field, the IFC™ valve is fully interchangeable with standard FC style valves, allowing for seamless integration into existing infrastructure.
Key IFC™ Features and Operational Benefits:
- Superior Wear Resistance: The gate is coated in premium Tungsten Carbide, paired with solid Stellite seat rings. This combination provides unparalleled defense against the abrasive wear common in harsh drilling fluids.
- Corrosion Protection: Available with SS316 inlay or Inconel 625 cladded ring grooves and seat pockets, ensuring the internal sealing surfaces resist severe chemical degradation. Externally, Zinc or Cadmium plated bonnet bolts and nuts offer a formidable shield against atmospheric corrosion.
- Optimized Performance: Equipped with Inconel grease fittings for maximum temperature endurance and long-term performance.
- Lower Operating Torque: The stem is MOS2 (Molybdenum Disulfide) coated, significantly reducing friction. This translates to lower operating torques, reducing operator fatigue and wear on actuation mechanisms.
- Broad Temperature Range: Fully rated to perform flawlessly in environments ranging from -50°F to 350°F.
- Size and Pressure Ratings: Available in versatile sizes ranging from 1-11/16” to 7-1/16”, all rated for high-pressure form 5k to 15k environments.
The IFLS™ Valve: Compact Power and Precision
Space is often at a premium on drilling rigs and well stimulation sites. The IFLS™ valve is expressly designed to meet the needs of modern exploration processes, providing precise fluid and pressure control without a massive footprint. Because of its compact and lightweight design, the IFLS™ seamlessly integrates into tight spaces while still withstanding harsh temperature and pressure environments.
At the core of our manifold systems’ success is the INTEGRATED IFLS™ PR2 and PSL3G tested “Bi-directional” Single Seat Designed gate valve. This allows operators precise control of fluid flow, pressure, and direction from both sides of the valve, ensuring optimal performance and safety regardless of flow dynamics.
IFLS™ Specifications and Highlights:
- Advanced Sealing Dynamics: The proprietary single-seat design provides a tight, highly reliable seal that drastically reduces the risk of hazardous leaks and spills during well stimulation and drilling.
- High-Tier Material Class: Offered with a trim material class up to HH, it provides exceptional resistance to internal corrosion, extending the valve’s service life in highly sour environments.
- Rugged Forged Construction: Built from a solid forged body with a full-bore (internally flushed) profile to maximize flow efficiency.
- Stringent Qualifications: Tested to Qualification Level PR2 (Appendix F Qualified) with a Temperature Class of P-X.
- Compliance Assured: Fully compliant with NACE MR-0175, ensuring safe operation in hydrogen sulfide (H2S) containing environments.
- Size and Pressure Ratings: Available in versatile sizes ranging from 2-1/16” to 7-1/16”, all rated for high-pressure 5k to 15k environments.
The AceFLO™ Valve: Expanding Gate Excellence
When total isolation and absolute sealing integrity are non-negotiable, the AceFLO™ expanding gate valve is the premier choice. The AceFLO™ is a PR2 tested, bi-directional valve that actively expands to mechanically seal against both upstream and downstream seats simultaneously. This dual-sealing capability ensures an incredibly tight shut-off, making it ideal for the most demanding 10k pressure-rated applications.
Furthermore, the AceFLO™ features a unique stem backseat design located inside the grease injection port, allowing the valve to backseat safely under pressure. With a non-rising stem and zero body penetrations, the potential for environmental leak paths is virtually eliminated.
AceFLO™ Product Specifications:
- Extreme Durability: Features Stellite 6 coated seats and gates for heavy-duty operational wear resistance. The trim is rated up to HH, utilizing an Inconel cladded body and a full 718 Inconel bonnet.
- Advanced Packing: Built with non-elastomeric seals and stem packing, allowing it to easily handle severe chemicals and a Temperature Class X (0°F to 350°F) environment.
- Size and Pressure Ratings: Available in versatile sizes ranging from 2-9/16” to 7-1/16”, all rated for high-pressure 15k environments.
- Quality and Compliance: Monogrammed to API 6A standards, adhering to a stringent PSL-4 Quality Level, and fully NACE MR-0175 compliant.
Uncompromising Quality and Manufacturing Standards
At INTEGRATED, we do not just manufacture valves; we engineer complete pressure control confidence. As an Original Equipment Manufacturer (OEM), our entire manufacturing ecosystem is governed by the highest international quality assurance protocols.
We are proudly licensed and certified under an extensive suite of industry standards, including API 6A, API 16A, API 16AR, API 16C, API 20E, ASME U, CE & CRN, ISO-9001 and API Q1. These licenses & certifications are not just plaques on our wall; they are a daily operational mandate that guarantees every valve leaving our facility is ready for the rigors of the oil and gas fields.
