Every reciprocating pump — whether it is pushing drilling mud downhole or moving produced water down a disposal line — delivers fluid in pulses, not a smooth stream. Each stroke sends a pressure spike through the system. Left unchecked, those spikes hammer pumps, valves, gauges, fittings and welds, shake lines, loosen connections and shorten the life of expensive equipment.
A Pulsation Dampener (PD) is the component that smooths those spikes out. INTEGRATED® designs and manufactures pulsation dampeners for reciprocating pumps across drilling, production and pipeline service. This post explains what they do, the difference between the production and drilling models, how they are sized and certified, and how to keep them running.

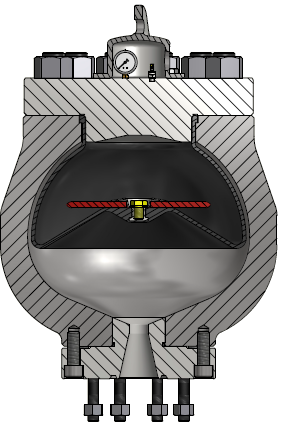

INTEGRATED® Drilling Pulsation Dampeners (IDPD™)

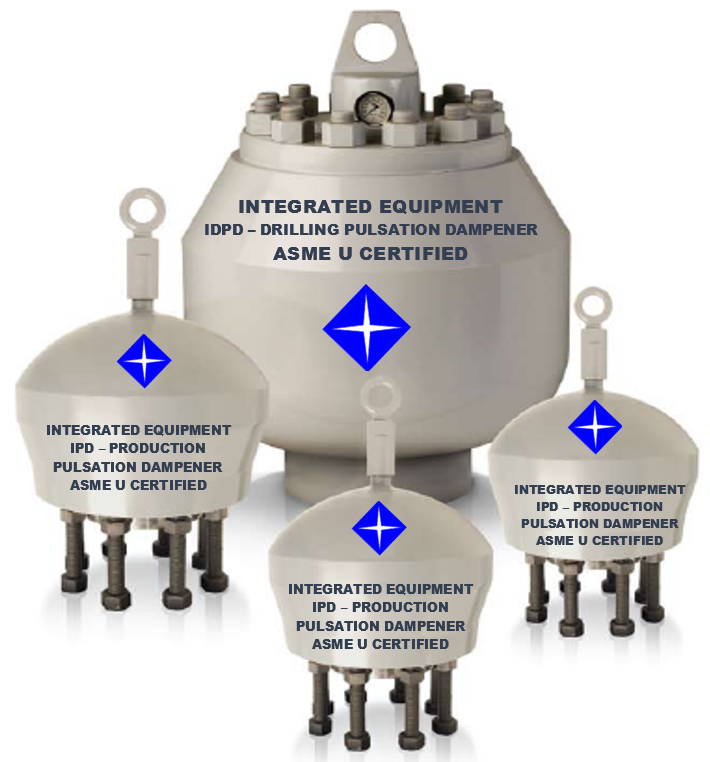

INTEGRATED® FAMILY OF PULSATION DAMPENERS

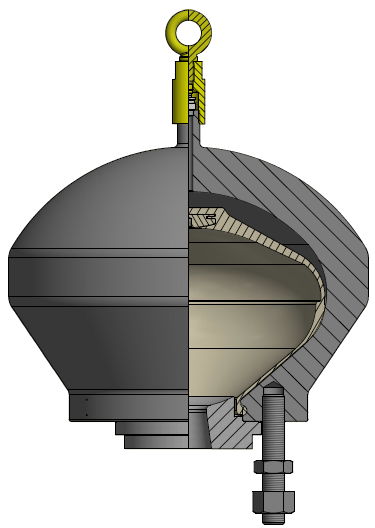

INTEGRATED® Production Pulsation Dampeners (IPPD™)
What a Pulsation Dampener Does — and Why It Matters
A pulsation dampener is an accumulator: a pressure vessel that absorbs the pressure pulsations created by reciprocating pumps. Inside, a gas cushion — typically nitrogen — sits behind a flexible diaphragm or bladder. As each pump stroke sends a surge of pressure, the gas compresses and absorbs the energy; as the pressure drops between strokes, the gas expands again. The result is a steadier, evener flow instead of a series of sharp spikes.
That steadier flow does real work across the system:
- Protects equipment — reduces wear and tear on the pump and on every downstream component: valves, seals, gauges and fittings.
- Steadies pressure — stabilizes pressure fluctuations so instruments read accurately and the process stays in control.
- Cuts vibration and noise — less shaking in the lines means fewer fatigue failures at joints and welds.
- Extends service life — smoother operation improves efficiency and lengthens the life of critical components.
Production vs. Drilling: IPPD™ and IDPD™
INTEGRATED manufactures pulsation dampeners for two primary applications. Both are diaphragm (bladder) type units, and both are ASME U code stamped (certification options; CE & CRN); the difference is the pump and the service they are matched to.
A quick note on names: across the industry, these are referred to generically as a PPD (production pulsation dampener) and a DPD (drilling pulsation dampener). INTEGRATED’s manufactured PD products are referred to as IPPD™ (INTEGRATED Production Pulsation Dampener) and the IDPD™ (INTEGRATED Drilling Pulsation Dampener).
Model | IPPD™ — Production | IDPD™ — Drilling |
|---|---|---|
Typical service | Reciprocating production pumps — suction & discharge, fluid-end pumping, pipeline, saltwater / produced-water disposal and injection | Mud pumps on the rig — smoothing pulsations in the drilling-fluid (mud) circulation system |
Where it sits | On the pump discharge (and suction) line in production and pipeline systems | On the mud-pump discharge, protecting the high-pressure mud line |
Certification | ASME U code stamped | ASME U code stamped |
Element | Diaphragm / bladder type, gas pre-charged | Diaphragm / bladder type, gas pre-charged |
If you are on the rig floor managing mud-pump pulsations, the drilling unit is the fit. If you are on the production or disposal side — fluid-end pumping, pipeline or saltwater injection — the production unit is the one to specify.
Sizes, Pressure Ranges and the ASME U Code Stamp
INTEGRATED offers production pulsation dampeners across a range of capacities (from small units up to large-volume vessels), with pressure ratings matched to the size and service. Exact sizes and pressure ratings are set per application form. Your INTEGRATED can confirm the right combination.
The ASME U stamp on the vessel is important. It certifies that the dampener has been designed, fabricated, inspected and tested to the ASME Boiler & Pressure Vessel Code (Section VIII, Division 1) the recognized standard for pressure vessels. INTEGRATED’s pulsation dampeners can also carry DNV, ABS, CE & CRN certifications. For an operator, that is assurance that the vessel managing pumped pressure was built to a globally recognized code.
Diaphragm Materials: Matching the Rubber to the Fluid
The pulsation dampener diaphragm (or bladder) is the internal component that is in constant contact with the pumped fluid, so matching the diaphragm compound to the exposed fluid and temperature is critical. INTEGRATED manufactures pulsation dampener diaphragms in a wide range of engineered elastomeric materials:
- NBR (Nitrile Butadiene Polymer) – the baseline compound for reliable performance in oil-based fluids.
- HNBR (Hydrogenated Butadiene Polymer) – for higher temperatures and sour (H2S) service.
- FKM (Fluorocarbon Polymer) – for the most chemically aggressive environments.
Because the diaphragms are engineered and manufactured in-house, they are matched to the same quality control as the pulsation dampener itself. For more information on how INTEGRATED selects elastomer compounds by fluid, temperature and chemical exposure, see our guide to INTEGRATED® Elastomers for oil & gas pressure control.
How a Pulsation Dampener Is Sized
Selecting a pulsation dampener is a technical decision, not an off-the-shelf pick. The right choice depends on several factors working together:
- Flow rate and system pressure – the starting point for capacity.
- Required pulsation attenuation – how much of the peak-to-peak pressure needs to be smoothed out.
- Fluid and environment – the material of construction must be compatible with the fluid being pumped and the operating conditions.
- Pre-charge pressure – the gas side is pre-charged to a pressure slightly below the minimum operating pressure of the system, so the dampener works across the full pressure cycle.
There is also a choice of element type. Bladder (diaphragm) dampeners are the most common and the most cost-effective; piston dampeners are better suited to very high pressures and temperatures or to corrosive and abrasive fluids. Getting the combination right is exactly where it pays to consult your INTEGRATED representative before ordering.
Where Pulsation Dampeners Are Used
INTEGRATED pulsation dampeners are built for reciprocating pumps across a wide range of duties:
- Drilling – smoothing mud-pump pulsations in the drilling-fluid circulation system.
- Production – suction and discharge service, and fluid-end pumping.
- Saltwater disposal and injection – protecting equipment on produced-water and disposal lines handling corrosive fluids.
- Pipeline – stabilizing flow and pressure along the line.
- Additional Markets – mining, petrochemical and reverse-osmosis systems that run reciprocating pumps.
Keeping Dampeners in Service: Diaphragms and Spare Parts
A pulsation dampener earns its value over years of service, and the diaphragm is a wear part. INTEGRATED supplies replacement pulsation dampener diaphragms (bladders) in NBR, HNBR and FKM along with charging assemblies, stabilizer plates and other spare parts — all under the same OEM engineering and quality control as the original equipment. INTEGRATED also offers pulsation dampener repair and remanufacturing, so an existing unit can be brought back to standard rather than replaced.
Frequently Asked Questions
What does a pulsation dampener do?
It absorbs the pressure spikes created by a reciprocating pump, smoothing the flow. That protects pumps, valves, gauges and lines, steadies’ pressure, and cuts vibration and noise.
What is the difference between the production and drilling dampeners?
The production unit (IPPD™) is matched to production, pipeline and disposal pumps; the drilling unit (IDPD™) is matched to mud pumps on the rig. Both are diaphragm-type and ASME U code stamped.
What does the ASME U code stamp mean?
It certifies the vessel was designed, built, inspected and tested to the ASME Boiler & Pressure Vessel Code (Section VIII, Division 1) – the recognized standard for pressure vessels. INTEGRATED units also carry CE, CRN, ABS and DNV certifications.
How is a pulsation dampener sized?
By flow rate and system pressure, the level of pulsation attenuation required, and fluid/environment compatibility — then pre-charged to a pressure slightly below the system’s minimum operating pressure.
How often does the diaphragm need replacing?
The diaphragm is a wear part; replacement intervals depend on fluid, pressure and duty. INTEGRATED supplies OEM replacement diaphragms and offers repair to keep units in service.
Choosing and sizing the right pulsation dampener is where reliable, low-vibration pumping starts. Explore INTEGRATED® pulsation dampeners, or talk to our team about the right unit for your pump and service.
